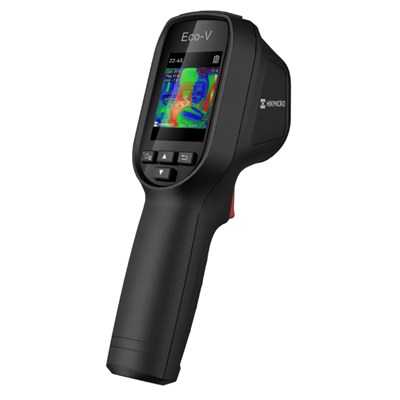

HIKMICRO ECO-V Thermal Imaging Camera

The HIKMICRO ECO-V combines thermal and visible imaging in a compact handheld format, offering Fusion mode for blended detail and SuperIR enhancement up to 240 × 240 resolution. With a wide 50° field of view, 25Hz refresh rate, and full-screen radiometric tracking, it delivers reliable temperature readings from -20°C to 550°C.

Key Features:

• 96 × 96 thermal resolution with SuperIR upscaling to 240 × 240
• Dual cameras with Thermal, Visual, and Fusion image modes
• One-click saving of both IR and visible images
• Six colour palettes including Fusion and Above Alarm
• Temperature range of -20°C to 550°C with ±2°C / ±2% accuracy
• Class II laser pointer for precise centre targeting
• 50° field of view and 0.1 m minimum focus distance
• Built-in 4GB memory storing up to 30,000 images
• 2.4” LCD screen with 240 × 320 resolution
• Auto tracking of max, min, and centre temperatures
• IP54 rated and drop tested to 2 m for rugged use
• Up to 8 hours of battery life with auto power-off options

What’s in the box?

• 1 x HIKMICRO ECO-V Thermal Imaging Camera
• 1 x USB 2.0 A to USB Type-C Cable
• 1 x Quick Start Guide
• 1 x Calibration Certificate

FAQs

What makes the ECO-V different from the standard ECO model?

The ECO-V adds a 0.3MP visual camera and Fusion image mode, allowing users to overlay visual and thermal images for added context and clarity. It also features one-click dual image saving, streamlining post-inspection analysis.

How accurate are the measurements on the ECO-V?

With a range of -20°C to 550°C and accuracy of ±2°C or ±2%, the ECO-V is well suited for detecting subtle temperature differences in insulation, HVAC, and electrical systems. It also includes automatic max/min/centre spot tracking for efficiency.

Can it be used for extended sessions?

Yes, the ECO-V offers up to 8 hours of runtime and features selectable auto power-off settings to extend battery life. Its 4GB internal memory holds up to 30,000 images, making it ready for a full day of field work.

Is the ECO-V durable enough for job site use?

Definitely. It is IP54 rated for dust and splash resistance, and drop tested from 2 m. Combined with a three-year warranty, it’s built to handle challenging environments confidently.
