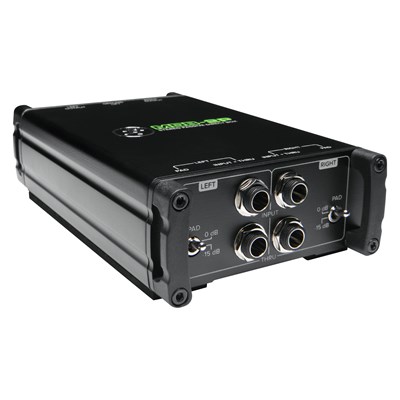

Mackie MDB-2P Stereo Passive Direct Box

Ideal for stereo sources like synthesizers and keyboards, the Mackie MDB-2P Stereo Passive Direct Box is designed to connect two mono instruments or a single stereo instrument to microphone preamps for recording sessions or live stage applications. It features dual 1/4" high-impedance inputs and Thru outputs to convert an instrument-level signal to microphone-level output.

Mackie MDB-2P Stereo Passive Direct Box Key Features:

• For use by musicians and audio engineers to stereo sources like keyboards and synthesizers
• Helps convert high-impedance, instrument-level signal to low-impedance, mic-level output
• Includes dual high-impedance inputs and Thru outputs
• Used for a connection of two mono or one stereo instrument to mic preamps
• The Thru jacks can be used for routing to pedal-boards or amplifiers
• Features a -15 dB input pad to prevent overloading when connected to a loud source
• Capable of minimising hum using the ground-lift switch
• Ensures distortion-free and ultra-low noise performance
• Requires no batteries or power supply, thanks to the passive design
• Includes a sturdy, steel chassis for vigorous use in the studio or on the road
• Is an essential tool for live sound venues, electronic musicians, and recording studios
• Offers 2 line inputs, 2 microphone inputs, and 2 Thru outputs
• Supports a frequency response of 20 Hz to 20 kHz and a dynamic range of 128 dB
• Weighs around 0.4 kg and is easily portable

What's in the box?

• 1 x Mackie MDB-2P Stereo Passive Direct Box
• Limited 1-Year Warranty

FAQs:

How many input and output ports are available?

The MDB-2P stereo passive direct box features 2 line inputs (L/R), 2 XLR inputs (L/R), and 2 Thru jacks for the conversion of high-impedance, instrument-level signal to low-impedance, microphone-level signal.

What is the input pad used for?

The integrated per-channel -15 dB input pad prevents overloading when accepting signals from a loud or high-gain source.

How to power the DI?

This direct box features a passive design that does not require any batteries or power supply to run the unit.

Which instruments can be connected?

It is designed to connect up to 2 mono instruments (like a guitar or a bass) or a single stereo instrument (like a keyboard or a synthesizer) to the microphone preamps.
